Nmap

Used To

Find hosts
Scan ports or detect firewalls
Guess operating systems
Find service, version and other relevant information

Syntax

nmap <scan type> <option> <target>

Find Hosts

Use -sP (old) or -sn (modern) to perform ping scan
It sends arp requests on local network and It sends ICMP Echo Request -PE, TCP SYN -PS or TCP ACK -PA on IP layer host based discovery.

namp 192.168.1.0/24 -sn

Starting Nmap 7.94 ( https://nmap.org ) at 2026-07-30 18:05 AEST

Nmap scan report for 192.168.1.1 Host is up (0.0021s latency).
MAC Address: 3C:84:6A:12:34:56 (Cisco Systems)

Nmap scan report for 192.168.1.5 Host is up (0.0045s latency).
MAC Address: 70:85:C2:AB:CD:EF (Intel Corporate)

Nmap scan report for 192.168.1.10 Host is up (0.0018s latency).
MAC Address: 28:D2:44:98:76:54 (Apple)

Nmap scan report for 192.168.1.15 Host is up (0.0062s latency).
MAC Address: DC:A6:32:11:22:33 (Samsung Electronics)

Scan Multiple Hosts

To find hosts from list add hosts in a file

cat hosts.txt

168.1.1
168.1.5
168.1.10
168.1.102
168.1.103
168.1.104
168.1.15

Provide list with -iL flag

nmap -sn -iL hosts.txt | grep "Host is up" | cut -d" " -f5

168.1.1
168.1.5
168.1.10
168.1.15

Or provide multiple IPs separated by space

nmap -sn  192.168.1.10 192.168.1.102 192.168.1.103 192.168.1.15 | grep "Host is up" | cut -d" " -f5

192.168.1.10
192.168.1.15

Or give range

nmap -sn  192.168.1.1-200 | grep "Host is up" | cut -d" " -f5

168.1.1
168.1.5
168.1.10
168.1.15

Scan Ports

Nmap provides below status for scanned ports

Status	Meaning
open	Connection to specified port is established
closed	Connection to specified port is not established
filtered	Nmap never reached the port (or the response never came back) due to firewall
unfiltered	Nmap can reach the port, but cannot find if port is open or closed.
open\|filtered	Nmap cannot tell whether the port is open or filtered because there was no response that distinguishes the two (common with `-sU`)
closed\|filtered	Nmap cannot tell whether the port is closed or filtered (common with `-sO`)

Provide --reason to see the reason behind port's status.

Scan all ports

Use -p- flag to scan all ports

nmap -p- 192.168.1.10

Scan specific ports

Use -p and provide ports to scan -p 20,80

nmap -p 20,80 192.168.1.10

Scan port range

After -p provide range with starting port - last port

nmap -p 1-1000 192.168.1.10

Scan port with specific protocols

Provide T:<port> for TCP and -U:<port> for UDP after -p flag

nmap -p T:80,443,U:53 192.168.1.10

Exclude ports (--exclude-ports <ports>)

Use --exclude-ports flag to exclude ports

nmap -p- --exclude-ports 22,80 192.168.1.10

Scan top ports (--top-ports)

Scans most common ports with --top-ports and provide how many top ports to scan.

└─$ sudo nmap localhost --top-ports=5
Starting Nmap 7.99 ( https://nmap.org ) at 2026-08-08 06:28 -0400
Nmap scan report for localhost (127.0.0.1)
Host is up (0.000017s latency).
Other addresses for localhost (not scanned): ::1

PORT    STATE  SERVICE
21/tcp  closed ftp
22/tcp  open   ssh
23/tcp  closed telnet
80/tcp  closed http
443/tcp closed https

Nmap done: 1 IP address (1 host up) scanned in 0.05 seconds

Fast scan (-F)

Use -F flag: scans first 100 top ports (same as --top-ports 100)

nmap -F 192.168.1.10

Aggressive Scan (-A)

-A enables several advanced detection features at once:

OS detection (-O)
Version detection (-sV)
Default NSE scripts (-sC)
Traceroute (--traceroute)

sudo nmap -A 192.168.1.10


Starting Nmap 7.99

Nmap scan report for 192.168.1.10
Host is up (0.0020s latency).

PORT   STATE SERVICE VERSION
22/tcp open  ssh     OpenSSH 9.6p1 Ubuntu
80/tcp open  http    Apache httpd 2.4.58

|_http-title: Ubuntu Default Page

Device type: general purpose
Running: Linux 5.X
OS details: Linux 5.15 - 6.5

Network Distance: 1 hop

TRACEROUTE
HOP RTT     ADDRESS
1   2.01 ms 192.168.1.10

Service detection performed.
Nmap done: 1 IP address (1 host up) scanned

Packet tracing

Used to see how packets were transferred (in this case 127.0.0.1:48891 is attacker - since it is localhost and 127.0.0.1:22 is target)

└─$ nmap localhost --packet-trace -p 22
Starting Nmap 7.99 ( https://nmap.org ) at 2026-08-08 06:30 -0400
SENT (0.0222s) TCP 127.0.0.1:48891 > 127.0.0.1:22 S ttl=52 id=14697 iplen=44 seq=281968420 win=1024 <mss 1460>
RCVD (0.0222s) TCP 127.0.0.1:48891 > 127.0.0.1:22 S ttl=52 id=14697 iplen=44 seq=281968420 win=1024 <mss 1460>
RCVD (0.0222s) TCP 127.0.0.1:22 > 127.0.0.1:48891 SA ttl=64 id=0 iplen=44  seq=3763854722 win=65495 <mss 65495>
Nmap scan report for localhost (127.0.0.1)
Host is up (0.000030s latency).
Other addresses for localhost (not scanned): ::1

PORT   STATE SERVICE
22/tcp open  ssh

Nmap done: 1 IP address (1 host up) scanned in 0.05 seconds

Assume host is online

Use -Pn to assume host is online (and proceed to scanning open ports)

nmap 192.168.1.20

Note: Host seems down. If it is really up, but blocking our ping probes, try -Pn
Nmap done: 1 IP address (0 hosts up) scanned

sudo nmap -Pn -p 22 192.168.1.10

Starting Nmap 7.99

Nmap scan report for 192.168.1.10
Host is up.

PORT   STATE SERVICE
22/tcp open  ssh

Nmap done: 1 IP address (1 host up) scanned in 0.04 seconds

	Normal	`-Pn`
Host discovery	Performed	Skipped
Assumes host is up	No	Yes
Port scan	Only if host is considered up	Proceeds regardless

Scan Types

Below are important scan types

-sS : TCP SYN Scan (Stealth Scan)
-sT : TCP Connect Scan
-sU : UDP Scan
-sA : ACK Scan
-sN : NULL Scan

There are more scan types as follows

-sP / -sn : Ping Scan (Host Discovery)
-sF : FIN Scan
-sX : Xmas Scan
-sW : Window Scan
-sM : Maimon Scan
-sI : Idle (Zombie) Scan
-sO : IP Protocol Scan

Scan Types: In-depth analysis

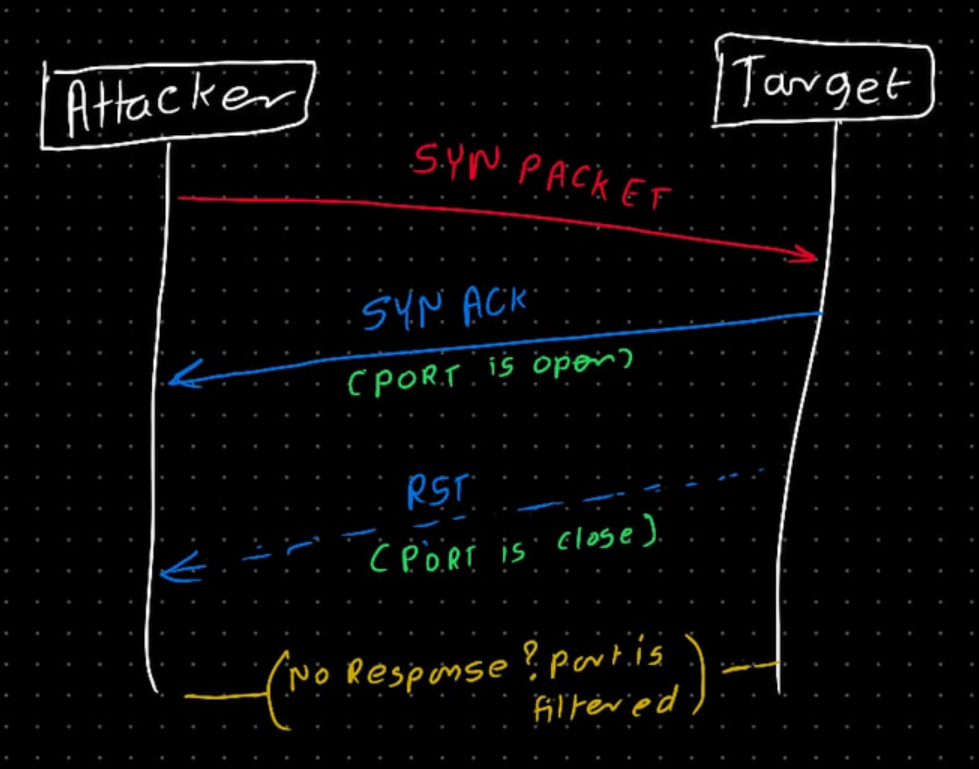

TCP SYN Scan (Stealth Scan) (-sS)

Attacker send SYN packet
If target responds with SYN-ACK port is open
If target responds RST port is closed
If target does not respond it is filtered indicating firewall is configured for given port

508

Let's see this Wireshark

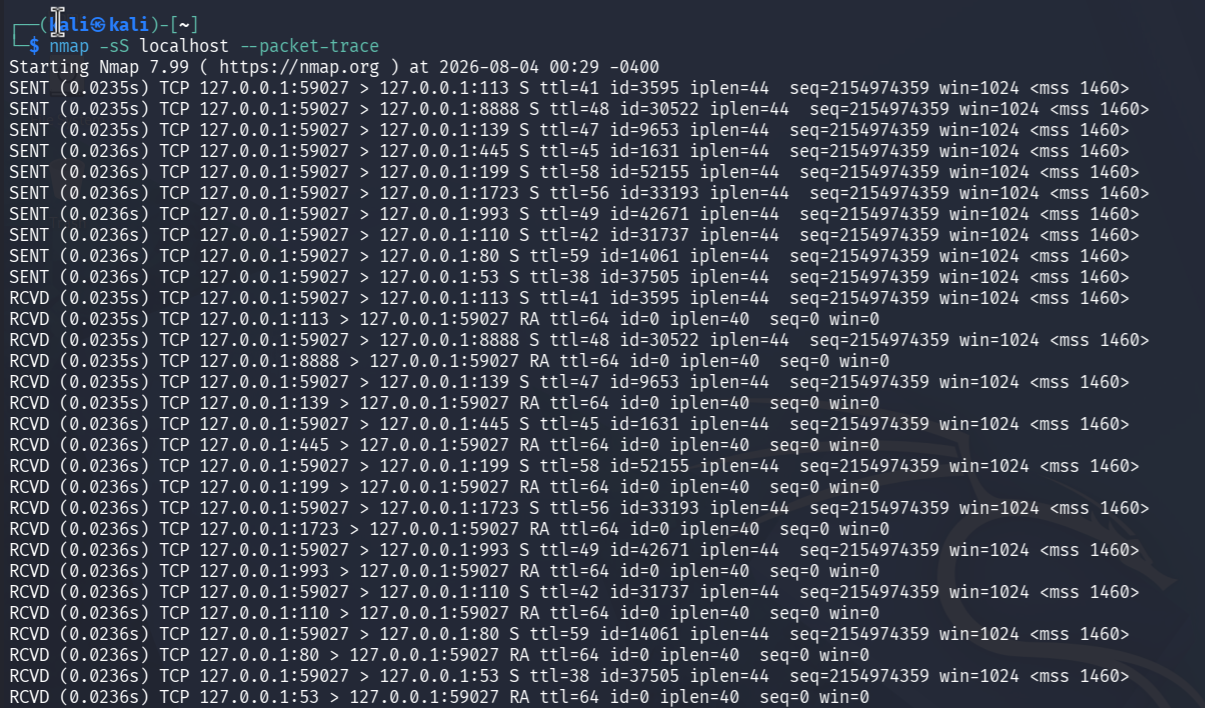

Using nmap SYN Scan -sS (--packet-trace is used for more verbose output in terminal)

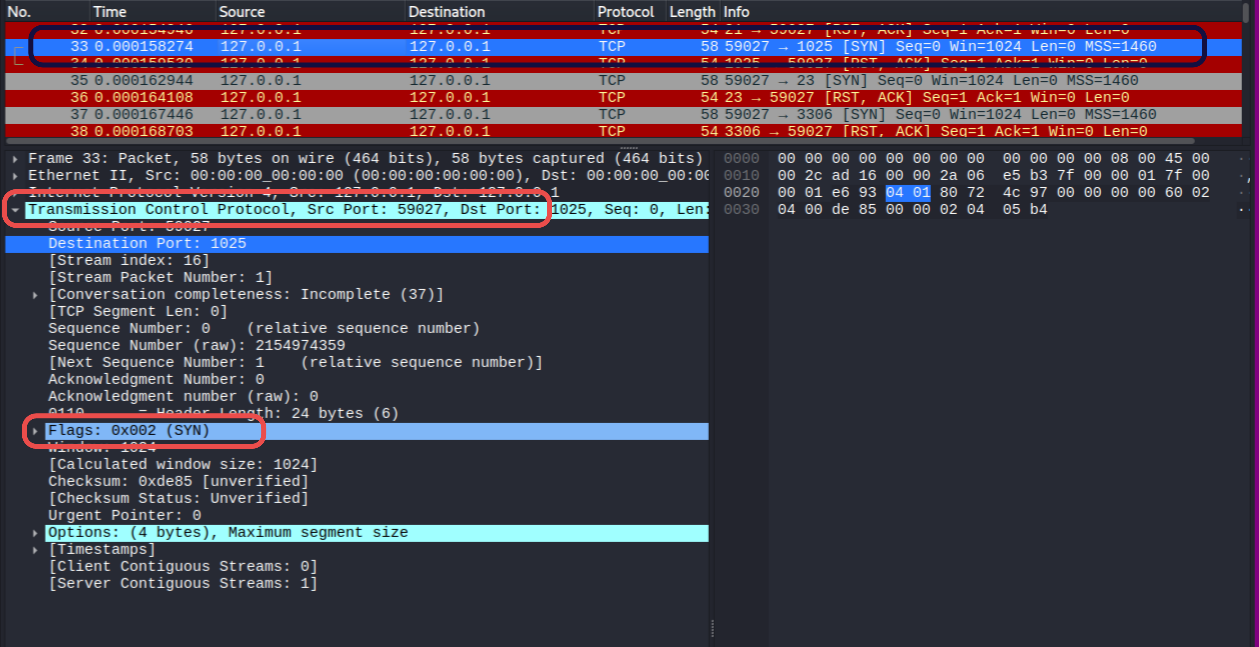

Below screenshot shows SYN Packet sent by attacker, this includes destination port and SYN flag is set.

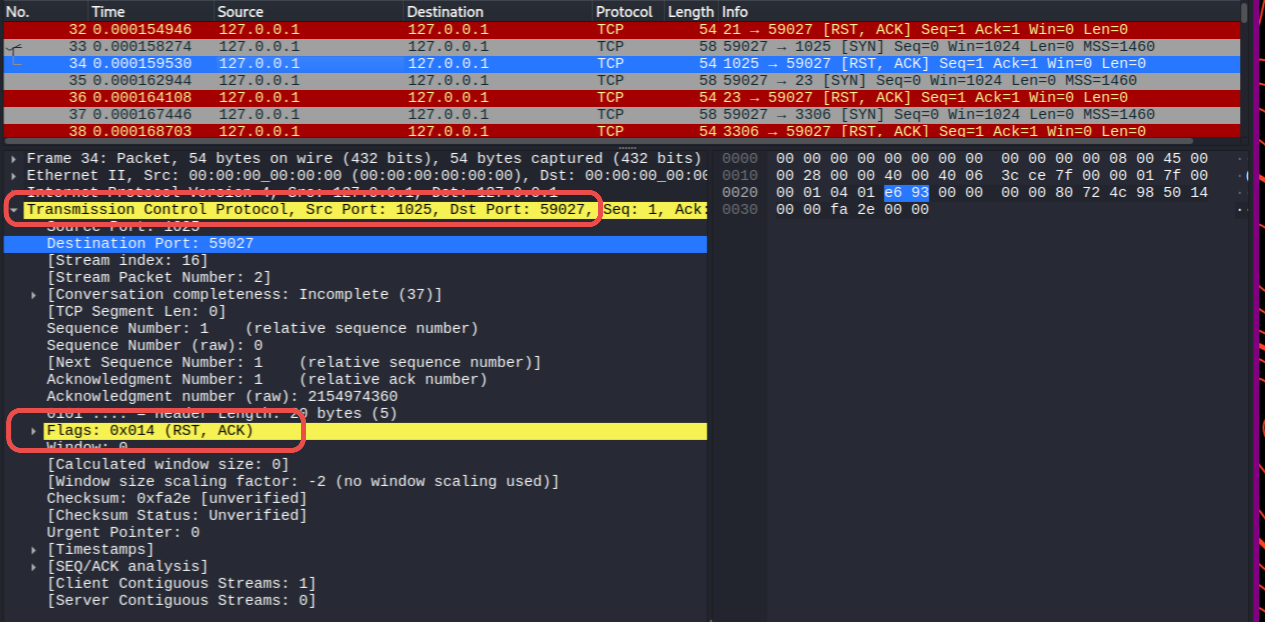

Case 1: Closed Port

If port is closed we get response packet with RST set

Case 2: Open Port

To open a tcp port (ssh) I used

sudo systemctl start ssh

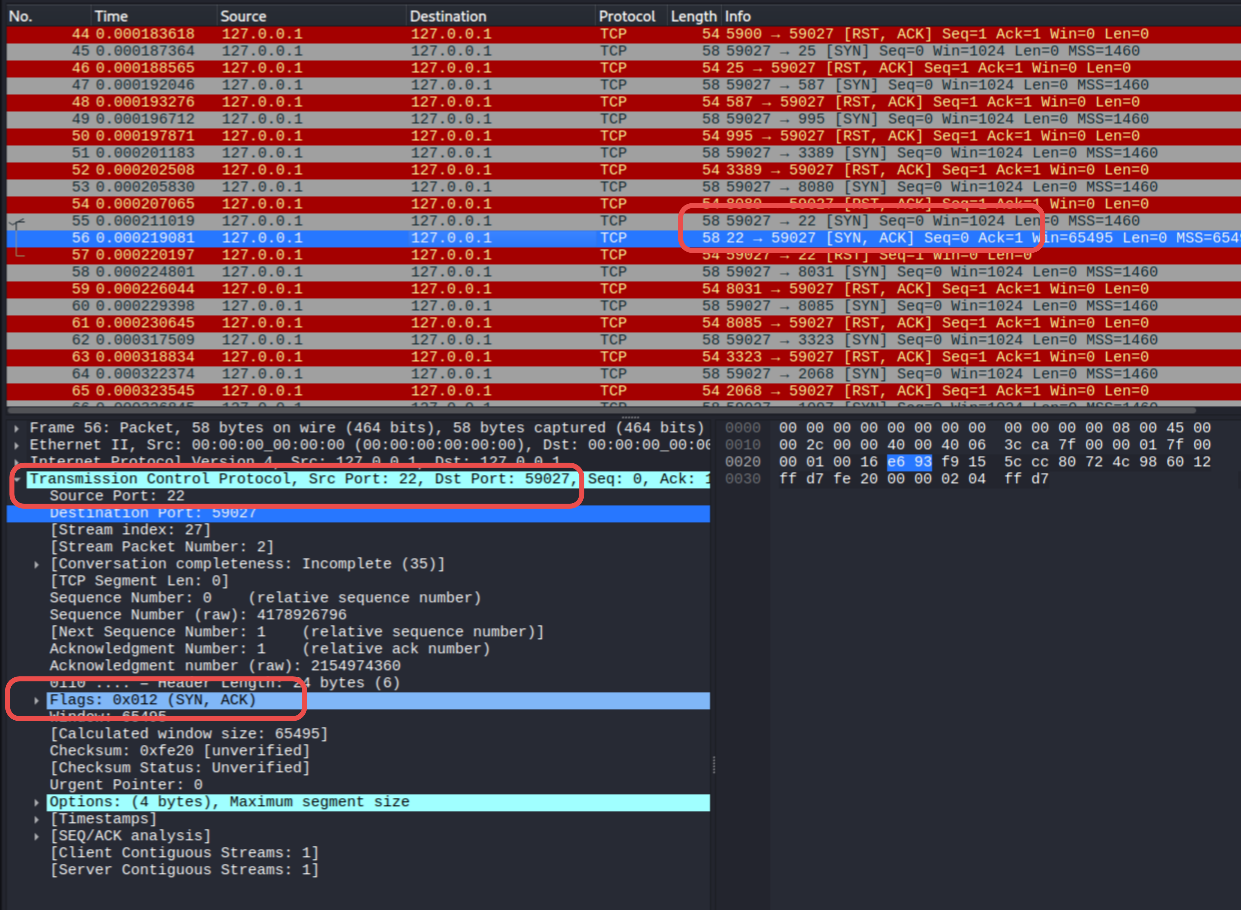

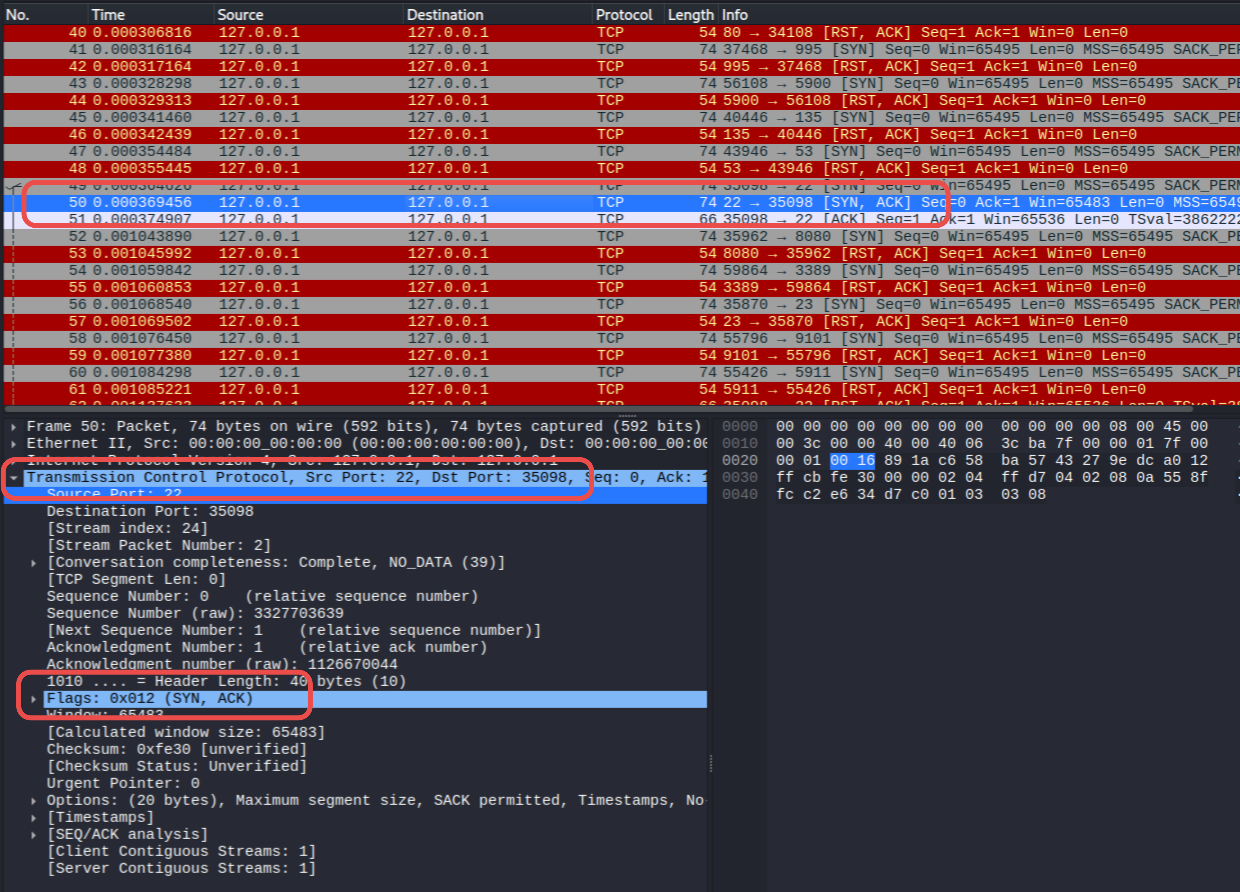

If the port is open we get SYN ACK response (In this case source port 22 SSH)

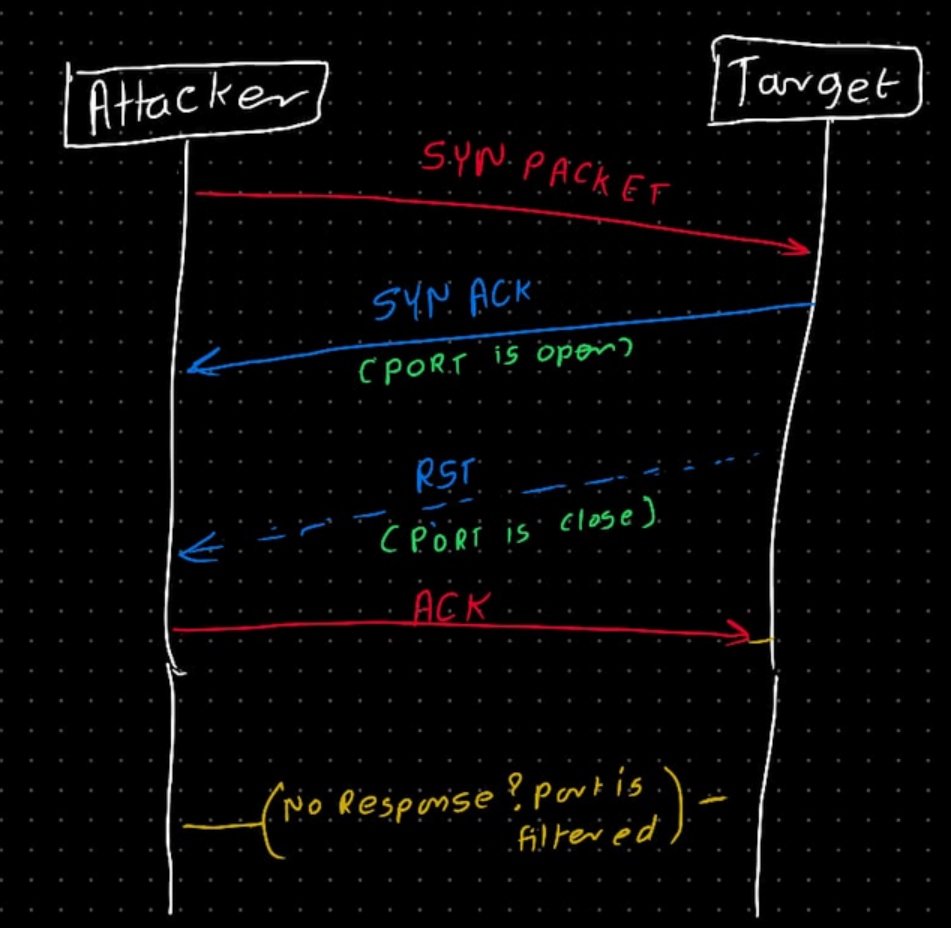

TCP Connect Scan (-sT)

Performs full TCP 3 way handshake
Slower than TCP SYN Scan and more noisy

488

Let's see it in wireshark

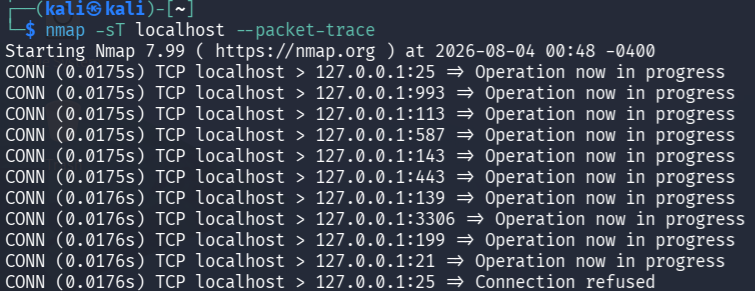

Using nmap -sT TCP Connect Scan

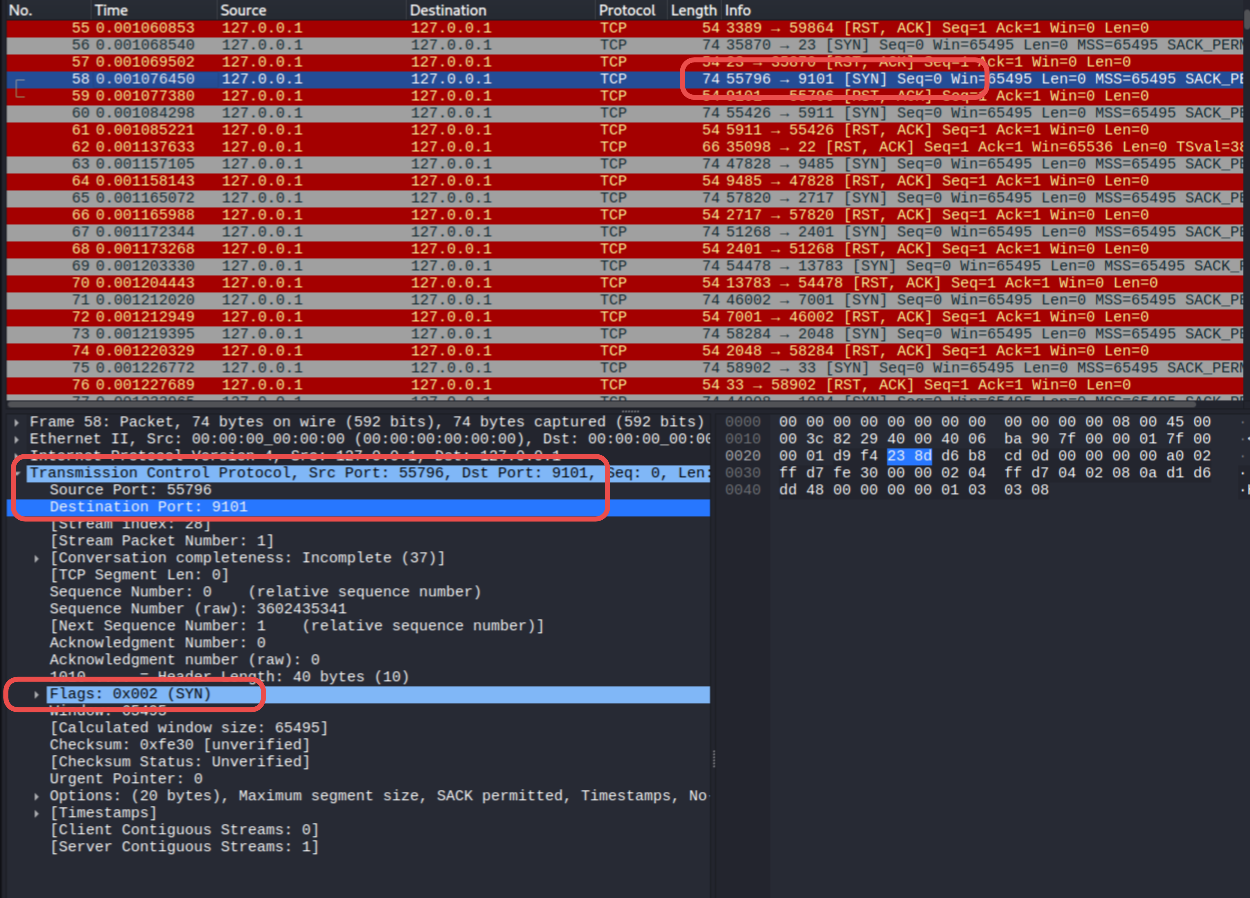

Below is request packet to port 9101

Case 1: Closed Port

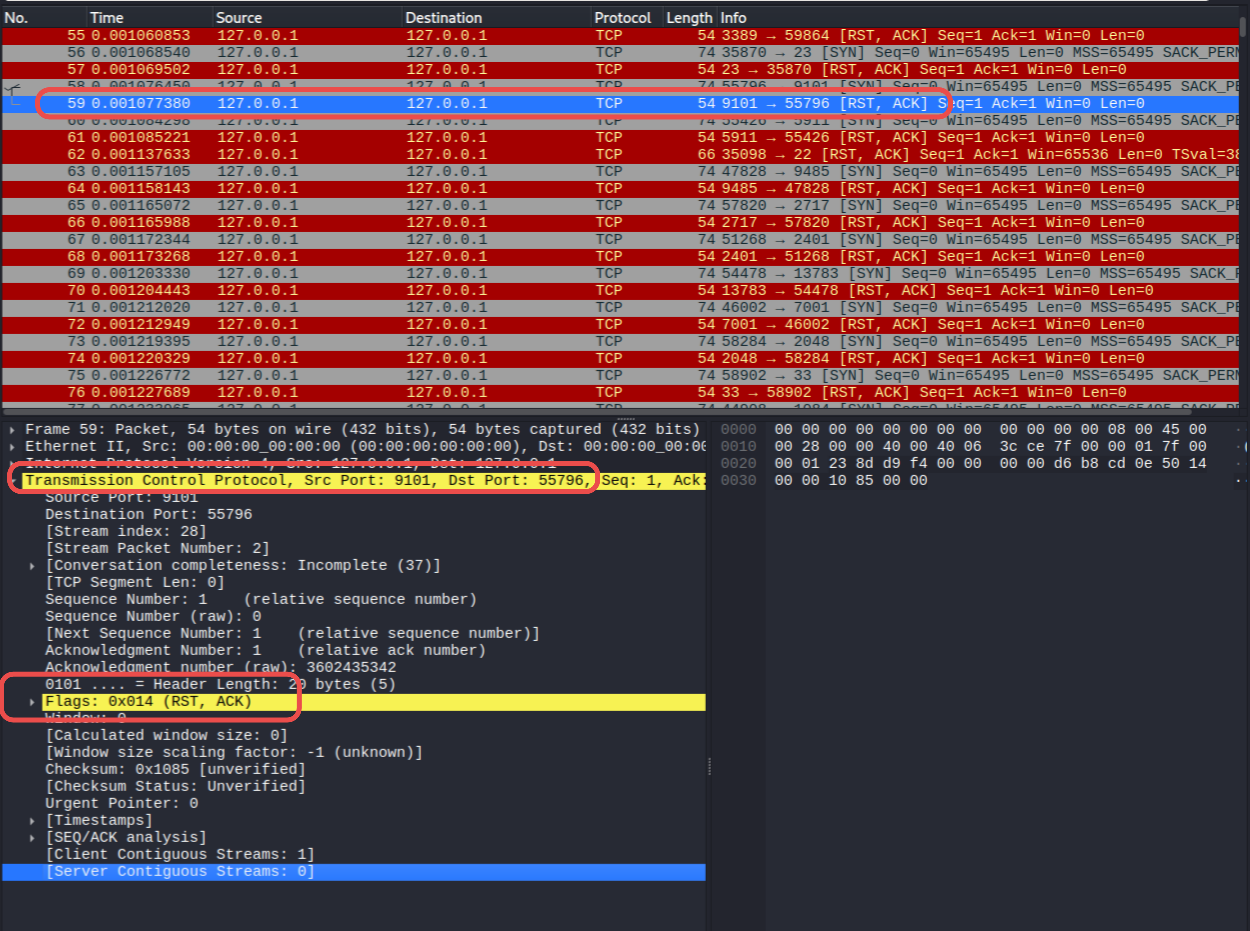

For closed port we see RST Packet response from port 9101

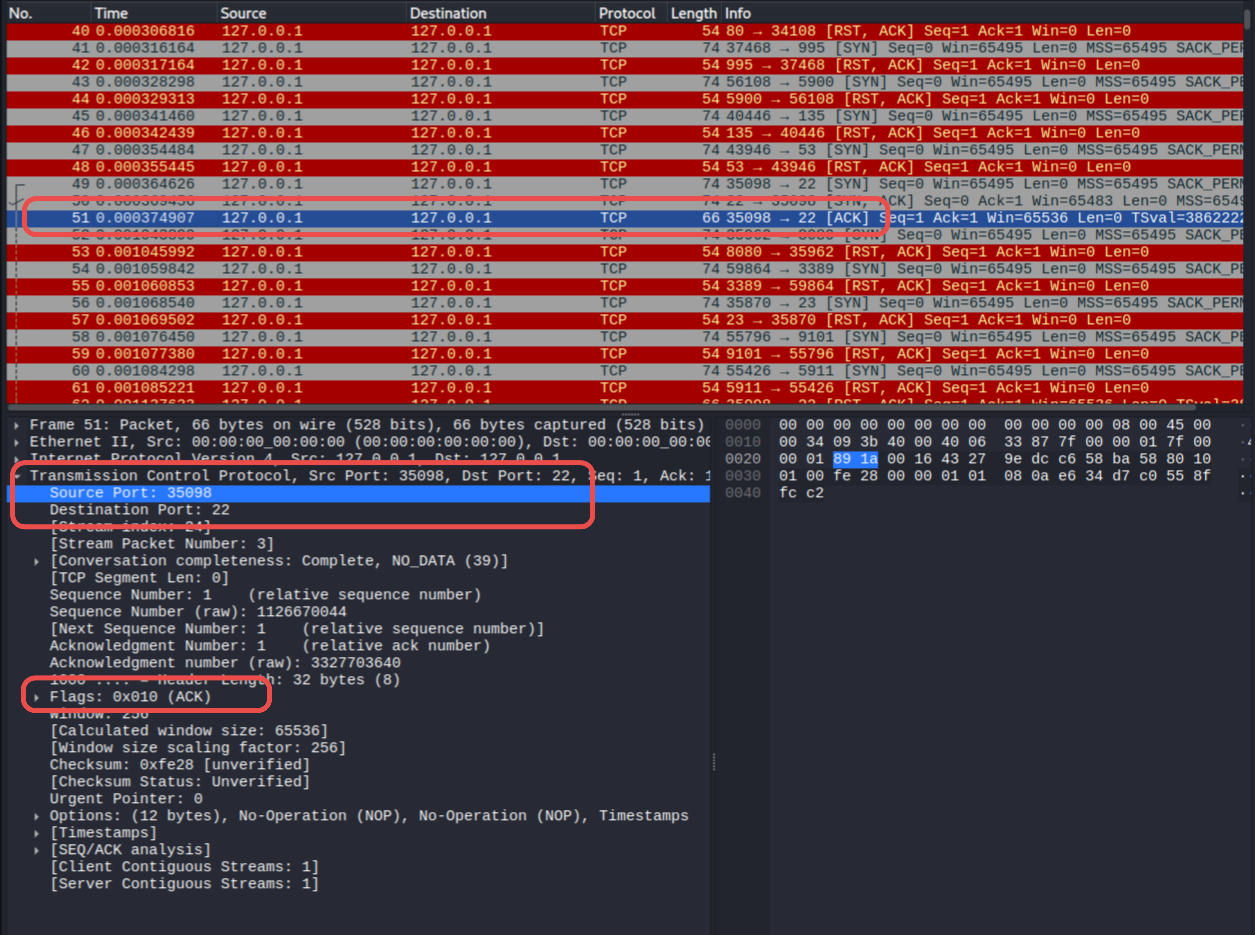

Case 2: Open Port

For open Packet we get SYN ACK

But Nmap also send ACK packet afterwords in this scan type to complete the 3 way handshake

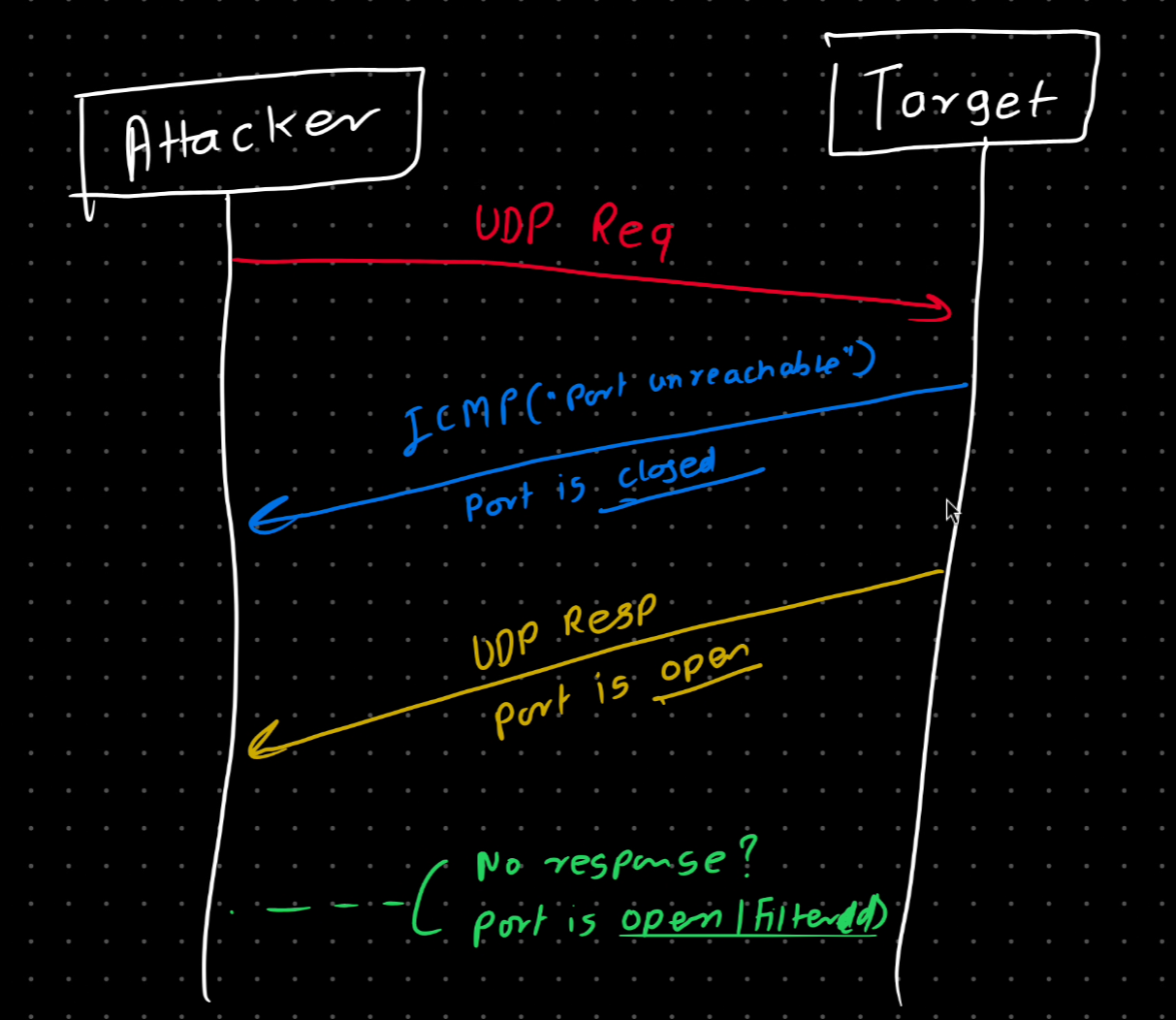

UDP Scan (-sU)

Attacker sends UDP packets instead TCP
If no response port is open/filtered
If ICMP "port unreachable" received port is closed.
Slower due to lack of response and retries

491

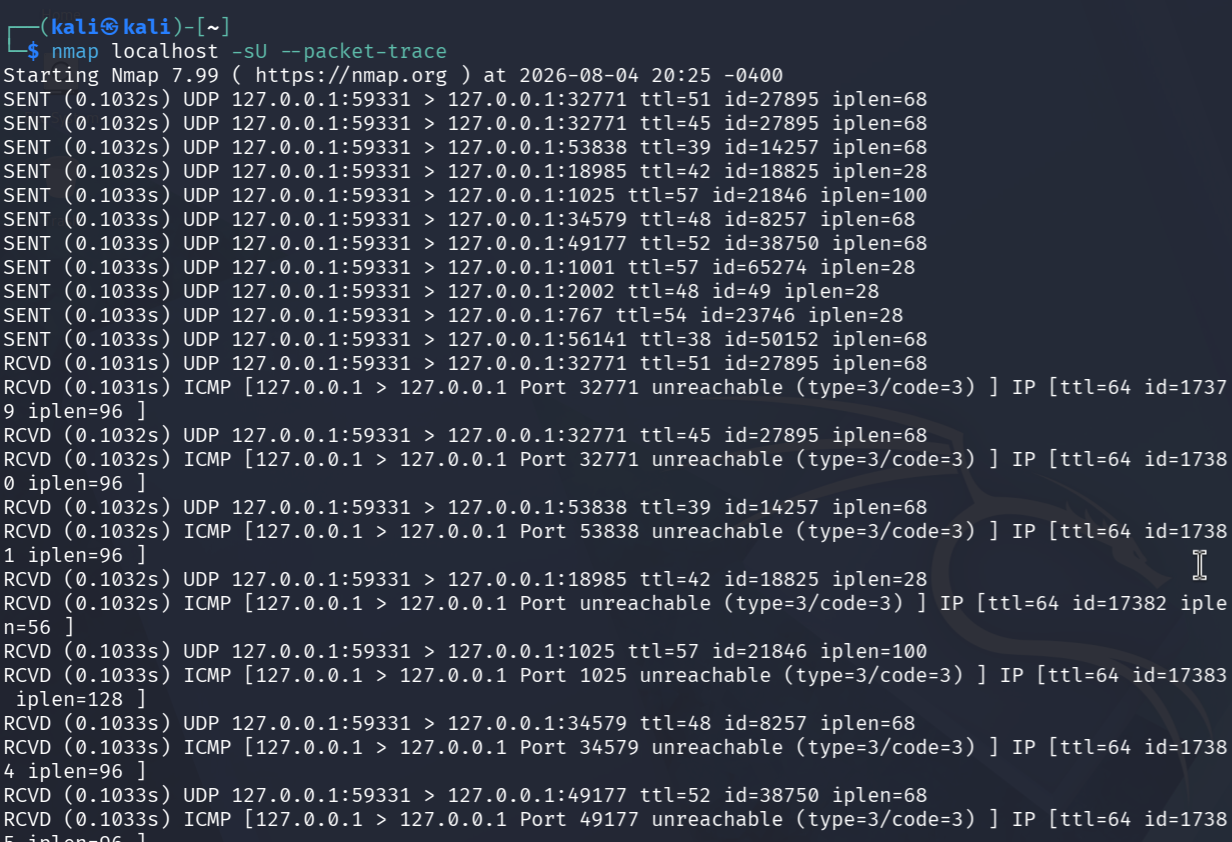

Let scan using -sU

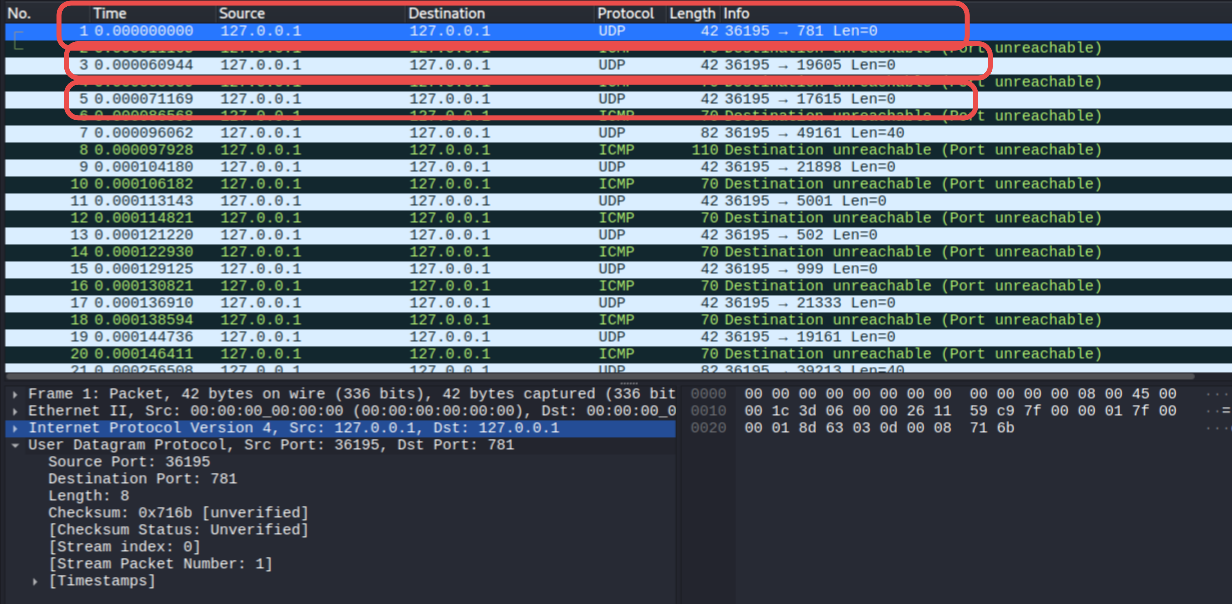

We see UDP request packet sent by nmap

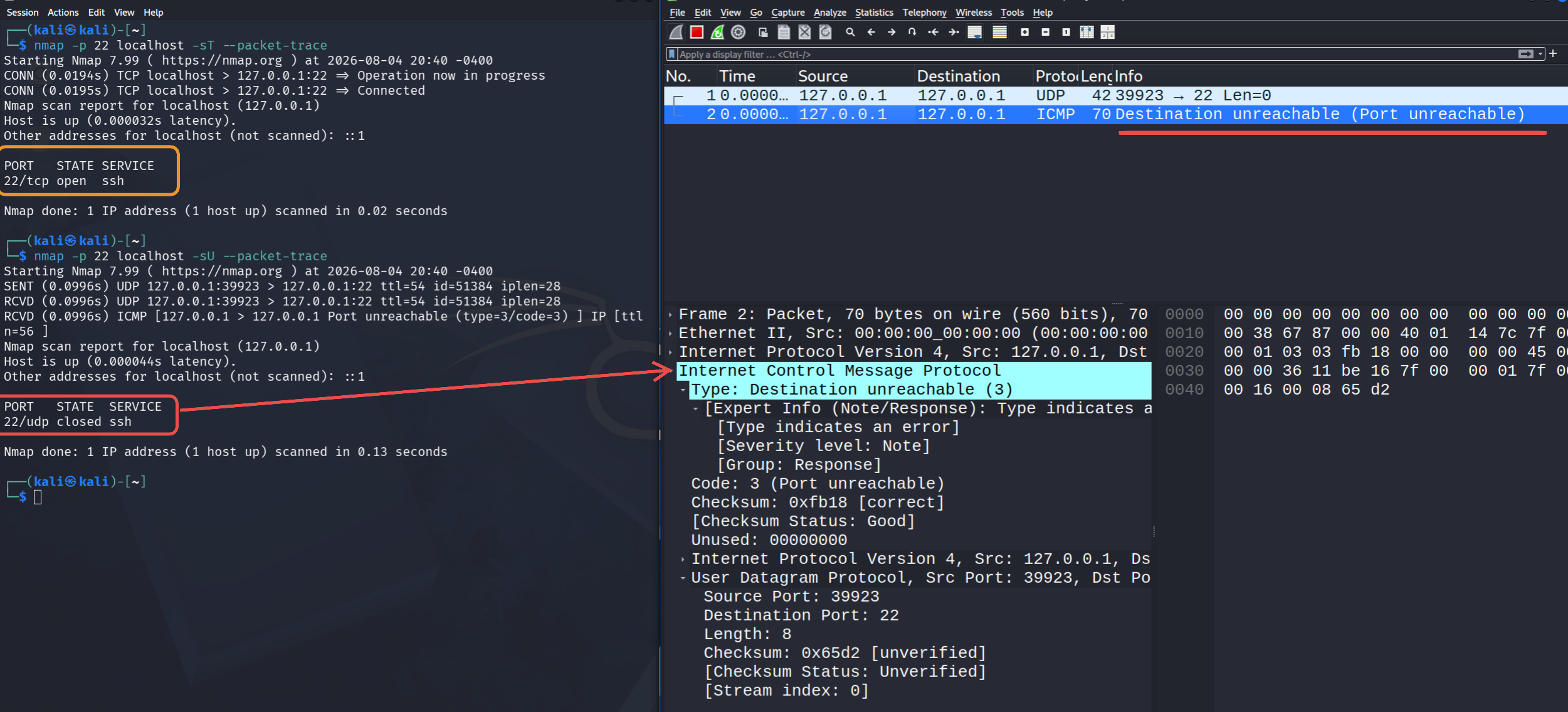

Case 1: Closed Port

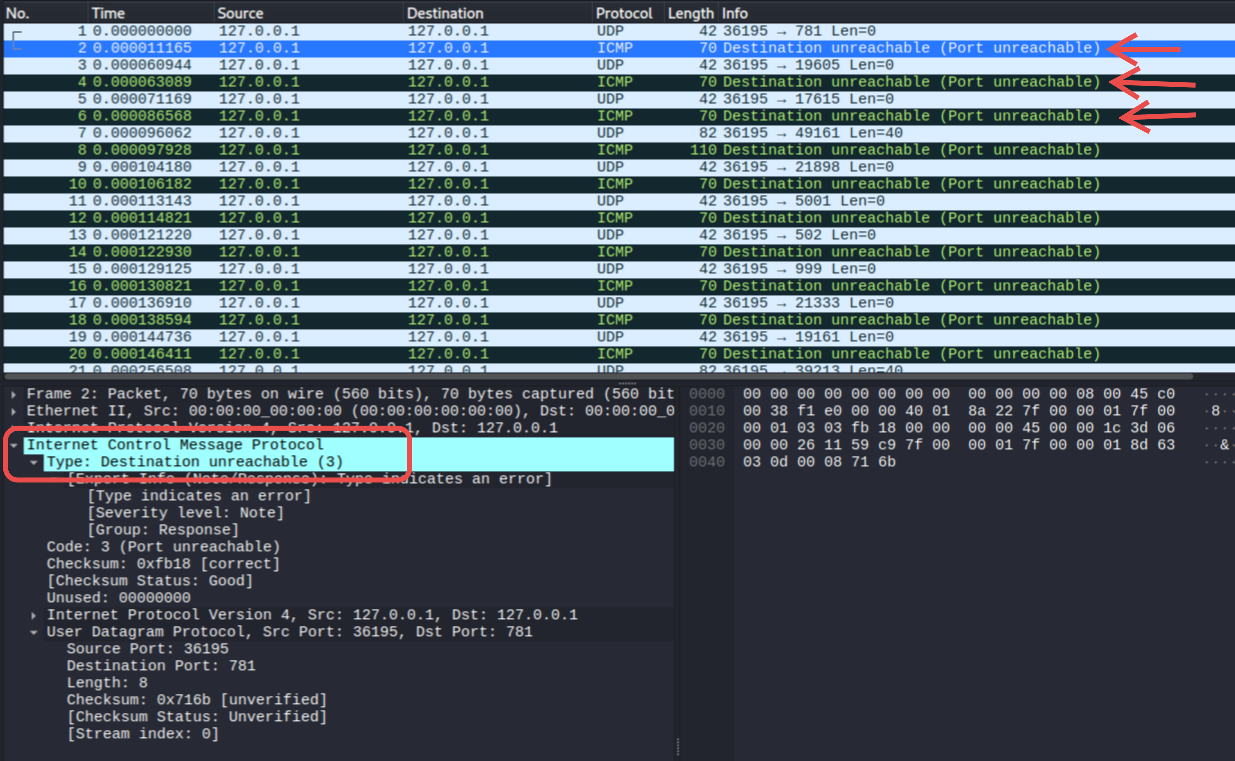

We get ICMP packet with type Destination Unreachable (3)

One important thing to note that if the port uses TCP it may still be shown as closed for example in below case SSH (port 22) is open however UDP Scan will not detect it as SSH uses TCP. Hence Request on SSH on UDP port is responded with ICMP - Destination Unreachable.

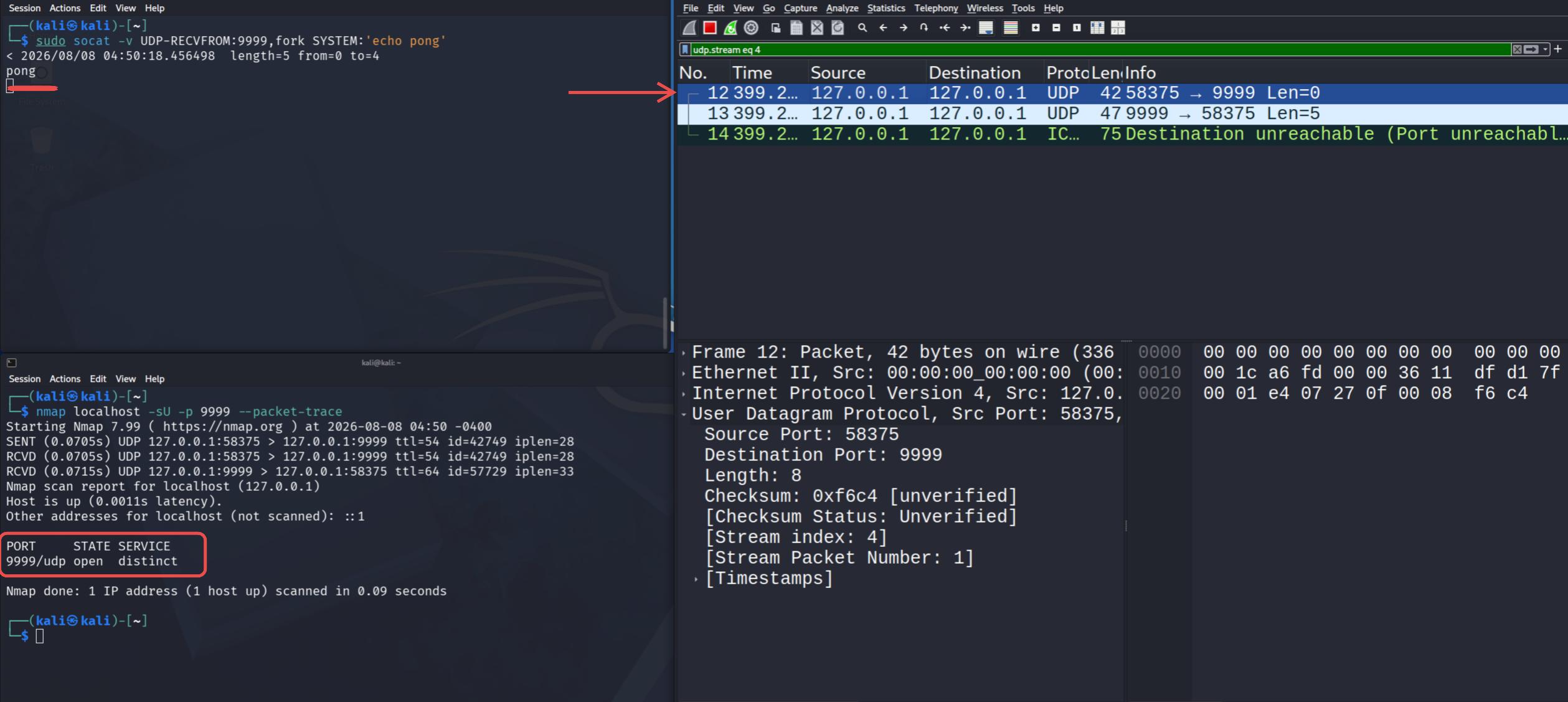

Case 2: Open Port

To open UDP port I used

sudo socat -v UDP-RECVFROM:9999,fork SYSTEM:'echo pong'

Here we sent the requst but we

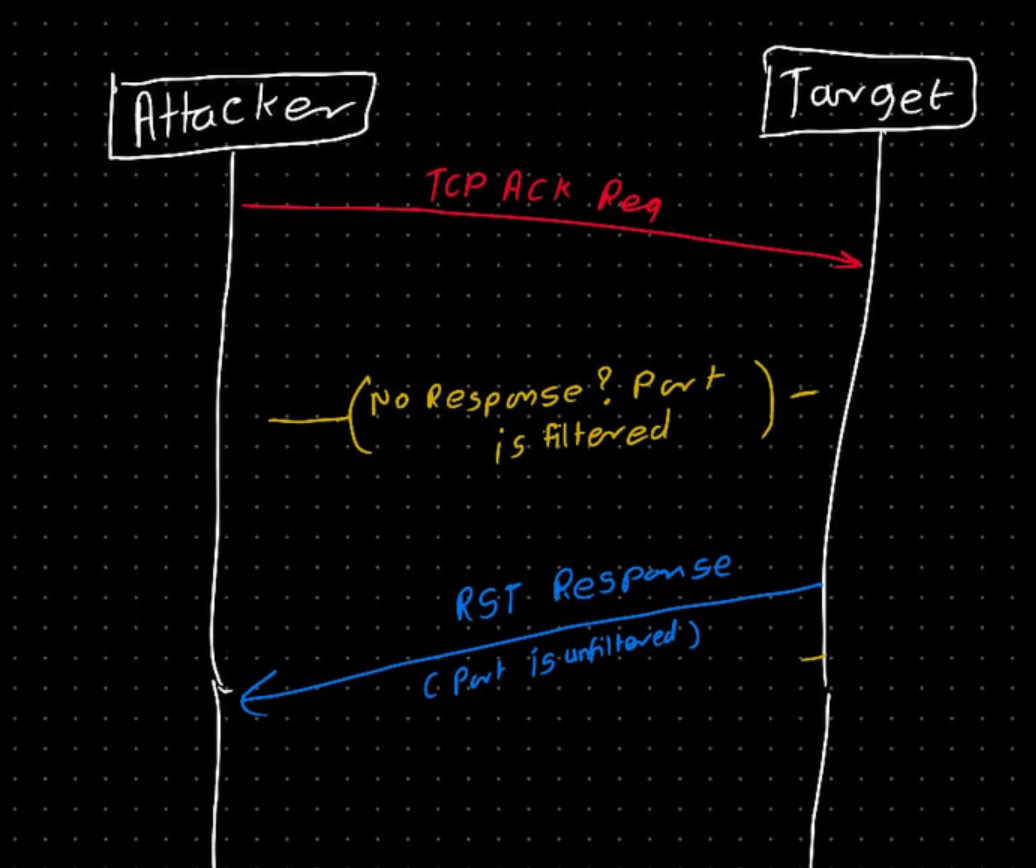

ACK Scan (-sA)

Used to detect firewall, not to find open ports
Sends ACK packets
RST response = unfiltered
No response / ICMP Unreachable = filtered
Helps determine if firewall is stateful/stateless

451

Let's analyse in Wireshark

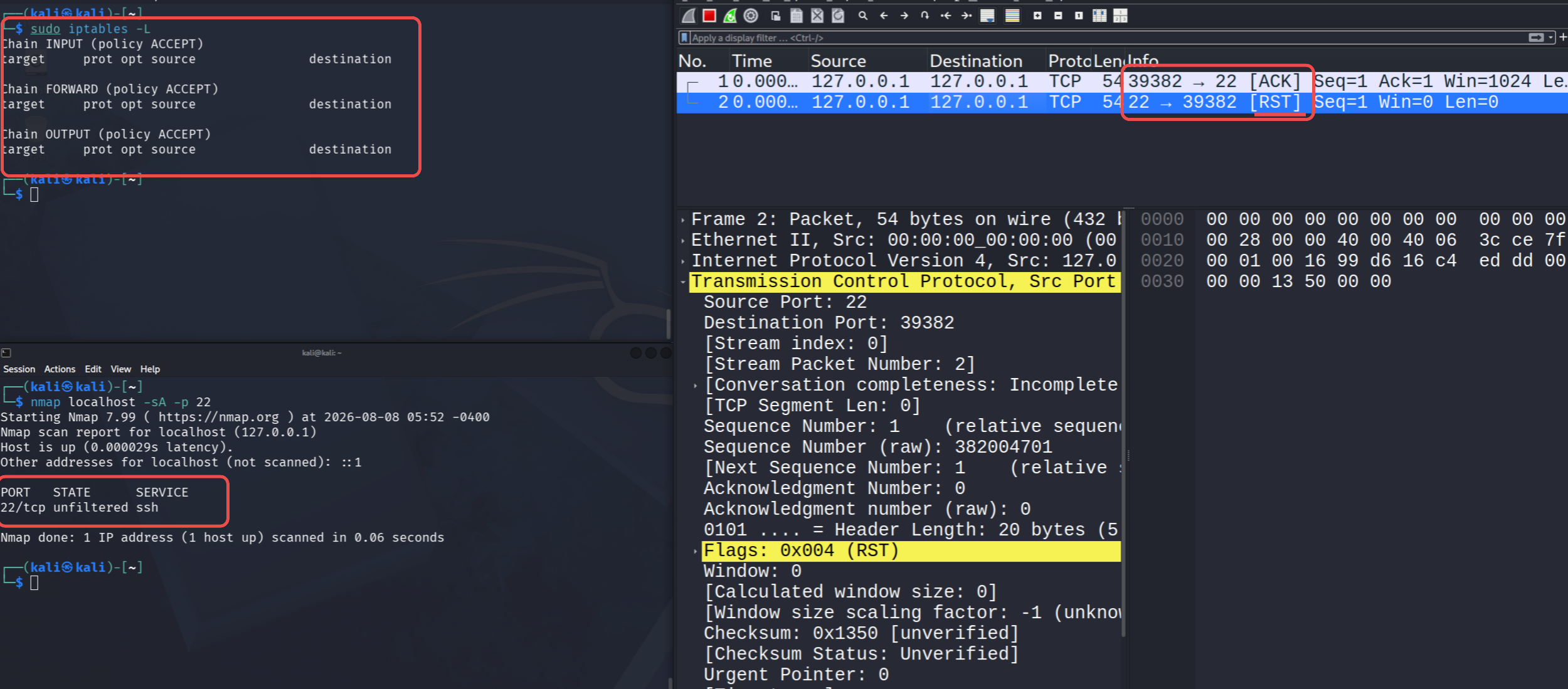

Case 1: Unfiltered Port

Initially there is not firewall rule set and localhost accept all Incoming packets
Scanning with nmap

We get RST in response, meaning there is no firewall set on port 22 (port is unfiltered)

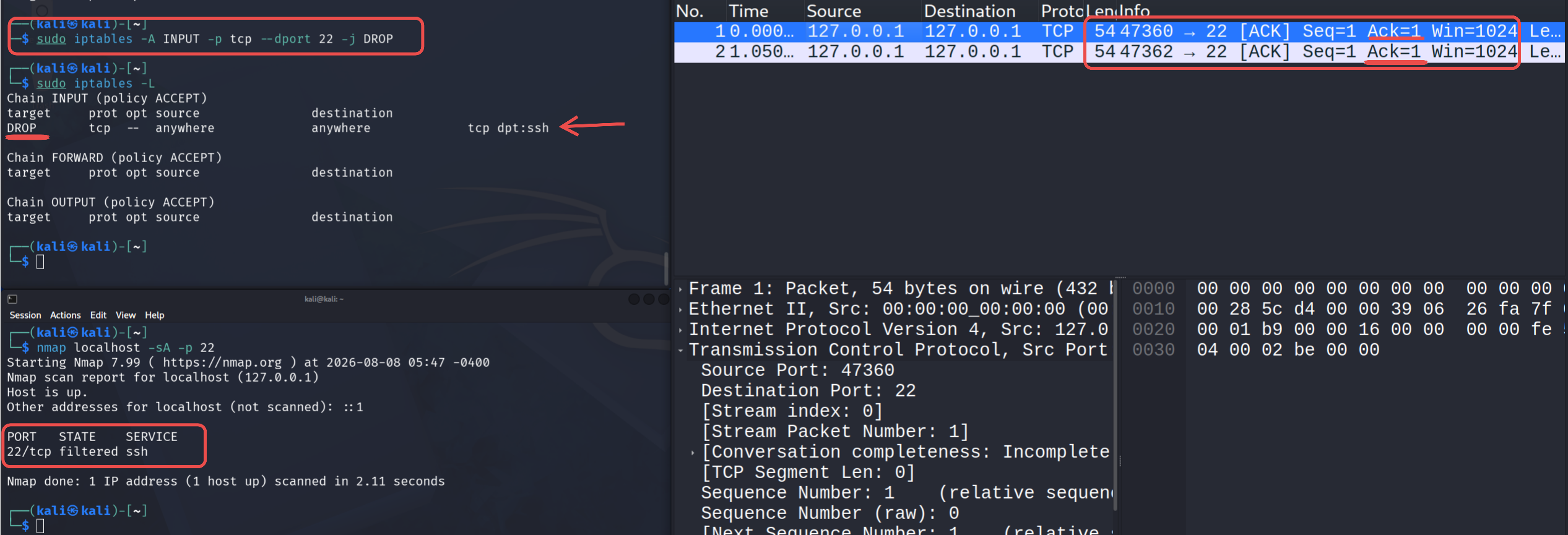

Case 2: Filtered Port

Adding iptables rule to block port 22/tcp

sudo iptables -A INPUT -p tcp --dport 22 -j DROP

Scanning with nmap

nmap localhost -sA -p 22

We didnt get any response.
Port 22/tcp is shown as filtered as it is blocked by firewall (in this case iptables)

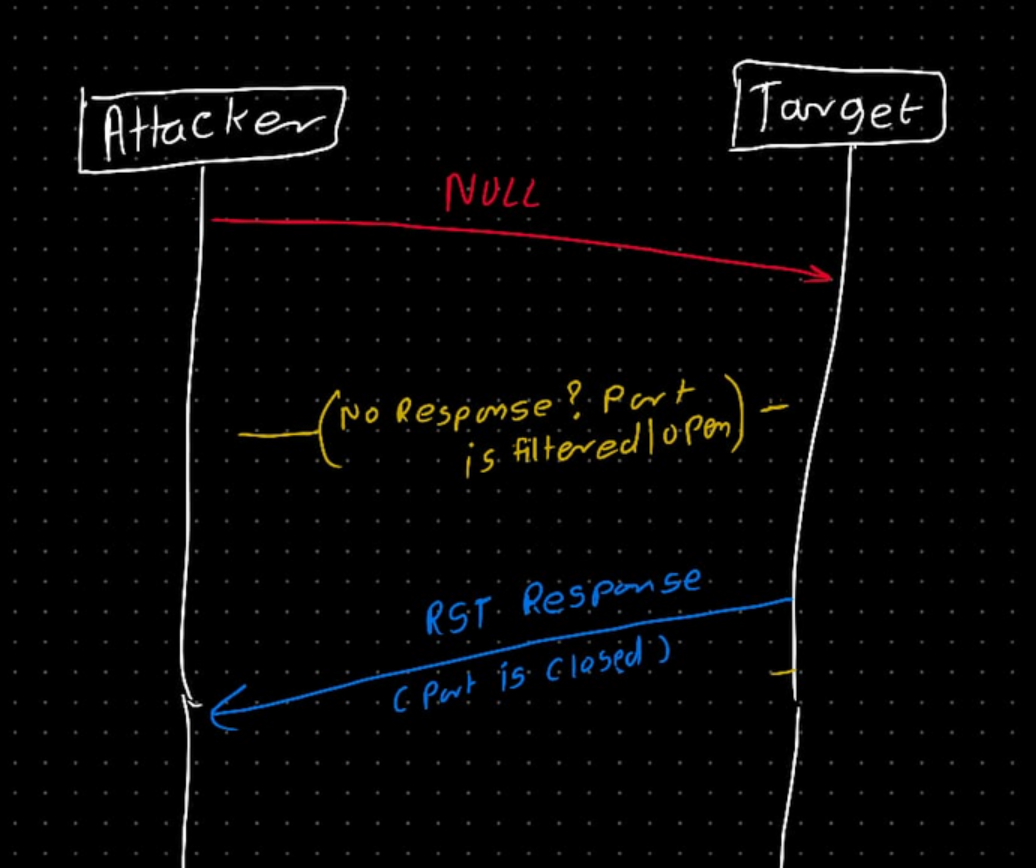

NULL Scan (-sN)

Sends packets with no flags set
No response = open|filtered
RST = closed
Can bypass some poorly configured firewalls

449

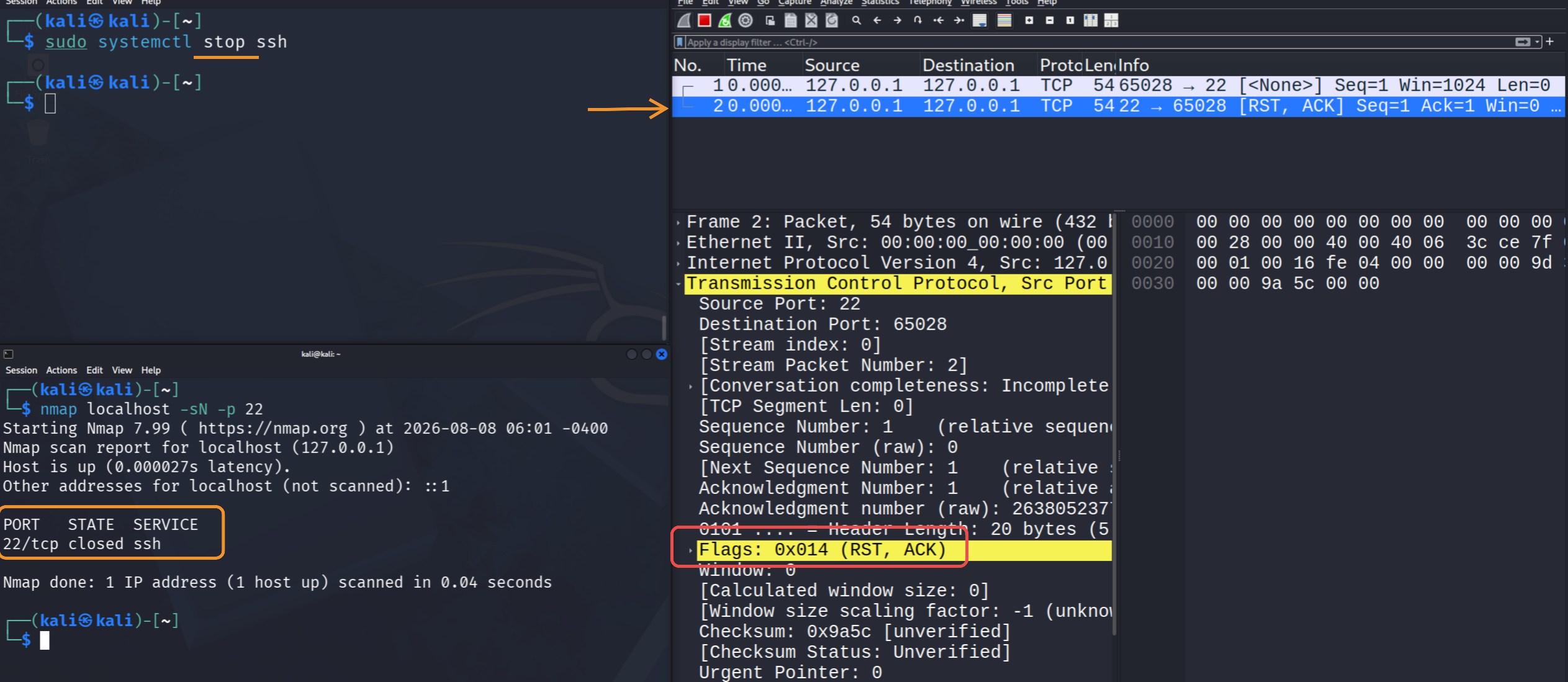

Case 1: Closed Port

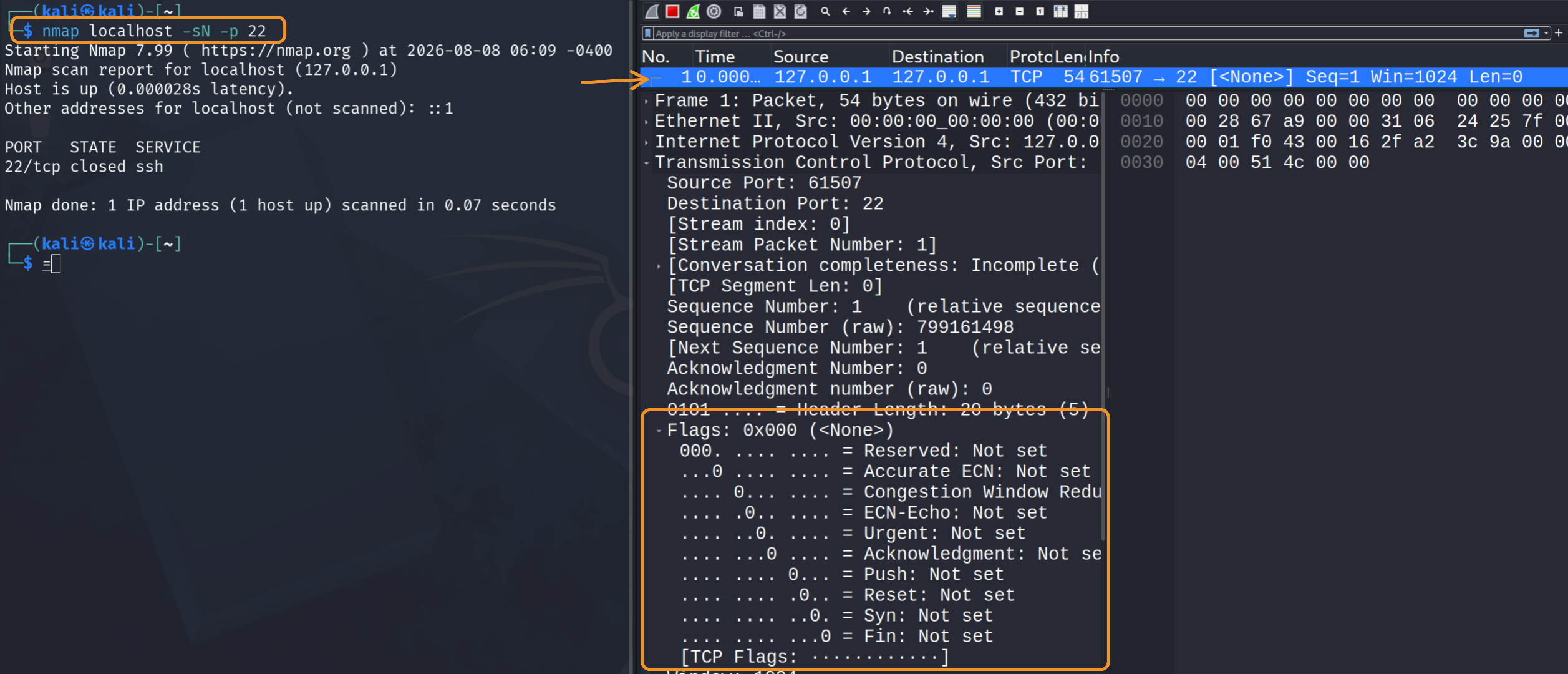

Nmap sends Null packet

In response we get Packet with RST flag set meaning the port is closed

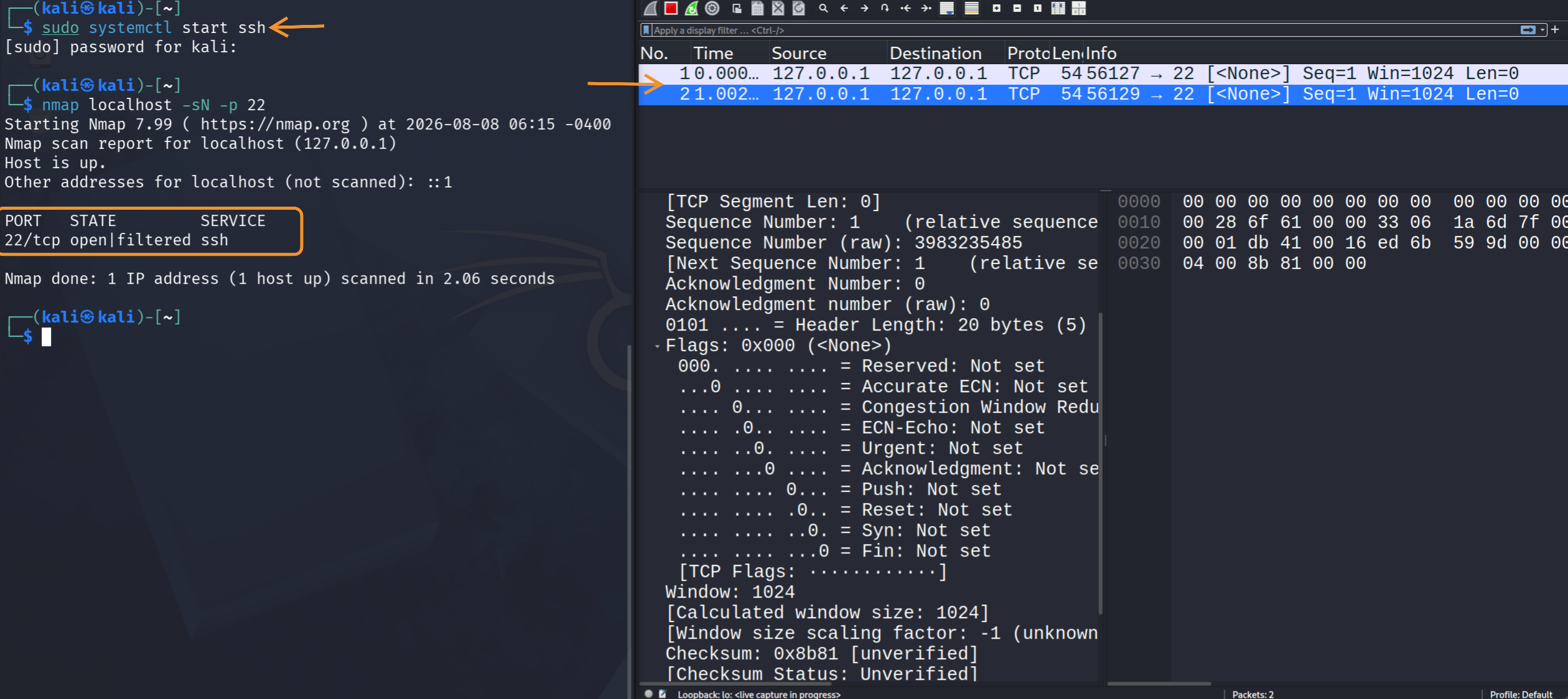

Case 2: Open|Filtered Port

We didn't get RST packet which means the port is open|filtered

Version Scan (-sV)

Used to find the version (nmap performs banner grabbing)

└─$ nmap localhost --packet-trace -p 22 -sV
Starting Nmap 7.99 ( https://nmap.org ) at 2026-08-08 06:40 -0400
SENT (0.0986s) TCP 127.0.0.1:61824 > 127.0.0.1:22 S ttl=46 id=50704 iplen=44  seq=3578826321 win=1024 <mss 1460>
RCVD (0.0986s) TCP 127.0.0.1:61824 > 127.0.0.1:22 S ttl=46 id=50704 iplen=44  seq=3578826321 win=1024 <mss 1460>
RCVD (0.0986s) TCP 127.0.0.1:22 > 127.0.0.1:61824 SA ttl=64 id=0 iplen=44  seq=267214121 win=65495 <mss 65495>
NSOCK INFO [0.1650s] nsock_iod_new2(): nsock_iod_new (IOD #1)
NSOCK INFO [0.1650s] nsock_connect_tcp(): TCP connection requested to 127.0.0.1:22 (IOD #1) (timeout: 5000ms) EID 8
NSOCK INFO [0.1650s] nsock_trace_handler_callback(): Callback: CONNECT SUCCESS for EID 8 [127.0.0.1:22]
Service scan sending probe NULL to 127.0.0.1:22 (tcp)
NSOCK INFO [0.1650s] nsock_read(): Read request from IOD #1 [127.0.0.1:22] (timeout: 6000ms) EID 18
NSOCK INFO [0.1830s] nsock_trace_handler_callback(): Callback: READ SUCCESS for EID 18 [127.0.0.1:22] (33 bytes): SSH-2.0-OpenSSH_10.3p1 Debian-4..
Service scan hard match (Probe NULL matched with NULL line 3562): 127.0.0.1:22 is ssh.  Version: |OpenSSH|10.3p1 Debian 4|protocol 2.0|
NSOCK INFO [0.1830s] nsock_iod_delete(): nsock_iod_delete (IOD #1)
Nmap scan report for localhost (127.0.0.1)
Host is up (0.000031s latency).
Other addresses for localhost (not scanned): ::1

PORT   STATE SERVICE VERSION
22/tcp open  ssh     OpenSSH 10.3p1 Debian 4 (protocol 2.0)
Service Info: OS: Linux; CPE: cpe:/o:linux:linux_kernel

Service detection performed. Please report any incorrect results at https://nmap.org/submit/ .
Nmap done: 1 IP address (1 host up) scanned in 0.19 seconds

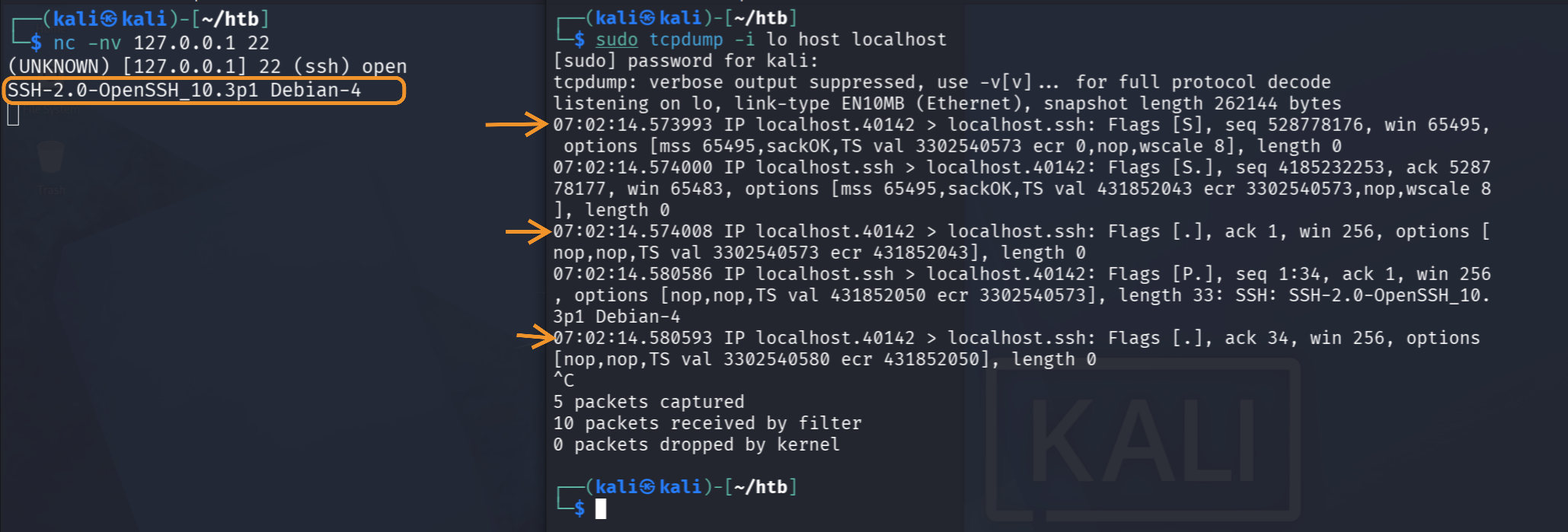

This is same as netcat brabbing the banner

In this the first 3 line shows tcp 3 way handshake to check if the port is open

02:14.573993 IP localhost.40142 > localhost.ssh: Flags [S], seq 528778176, win 65495, options [mss 65495,sackOK,TS val 3302540573 ecr 0,nop,wscale 8], length 0
02:14.574000 IP localhost.ssh > localhost.40142: Flags [S.], seq 4185232253, ack 528778177, win 65483, options [mss 65495,sackOK,TS val 431852043 ecr 3302540573,nop,wscale 8], length 0
02:14.574008 IP localhost.40142 > localhost.ssh: Flags [.], ack 1, win 256, options [nop,nop,TS val 3302540573 ecr 431852043], length 0

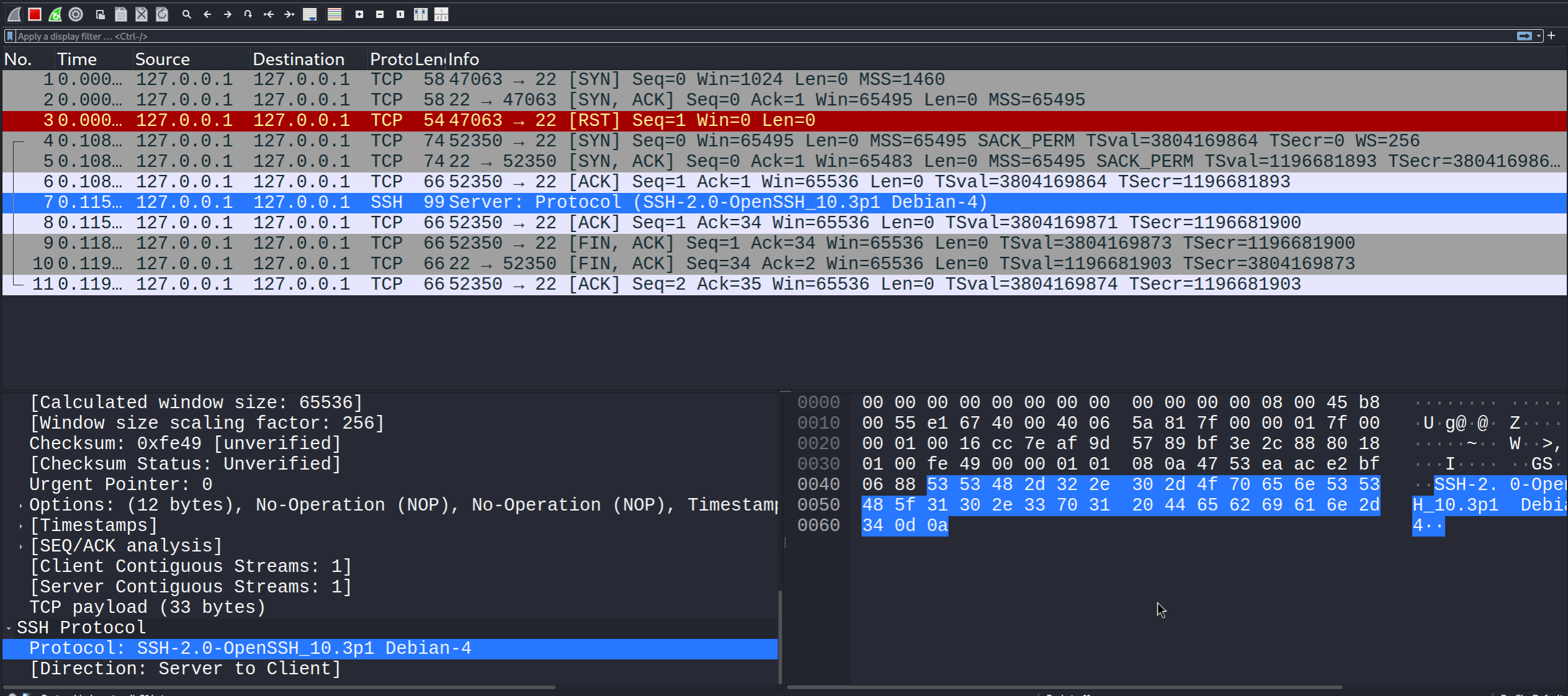

In below first is request is to ask what is version and response is the banner.

07:02:14.580586 IP localhost.ssh > localhost.40142: Flags [P.], seq 1:34, ack 1, win 256, options [nop,nop,TS val 431852050 ecr 3302540573], length 33: SSH: SSH-2.0-OpenSSH_10.3p1 Debian-4
07:02:14.580593 IP localhost.40142 > localhost.ssh: Flags [.], ack 34, win 256, options [nop,nop,TS val 3302540580 ecr 431852050], length 0

Store Results

3 formats
- -oN: Normal text format (same as the output)
- -oX: XML format
- -oG: Grepable format
Use -oA to store results in all 3 formats

┌──(kali㉿kali)-[~/htb]
└─$ nmap localhost -p- -oA nmap
Starting Nmap 7.99 ( https://nmap.org ) at 2026-08-08 06:48 -0400
Nmap scan report for localhost (127.0.0.1)
Host is up (0.0000020s latency).
Other addresses for localhost (not scanned): ::1
Not shown: 65534 closed tcp ports (reset)
PORT   STATE SERVICE
22/tcp open  ssh

Nmap done: 1 IP address (1 host up) scanned in 0.35 seconds

Check the result

┌──(kali㉿kali)-[~/htb]
└─$ ls
nmap.gnmap  nmap.nmap  nmap.xml

stored in normal text

┌──(kali㉿kali)-[~/htb]
└─$ cat nmap.nmap
# Nmap 7.99 scan initiated Sat Aug  8 06:48:47 2026 as: /usr/lib/nmap/nmap --privileged -p- -oA nmap localhost
Nmap scan report for localhost (127.0.0.1)
Host is up (0.0000020s latency).
Other addresses for localhost (not scanned): ::1
Not shown: 65534 closed tcp ports (reset)
PORT   STATE SERVICE
22/tcp open  ssh

# Nmap done at Sat Aug  8 06:48:47 2026 -- 1 IP address (1 host up) scanned in 0.35 seconds

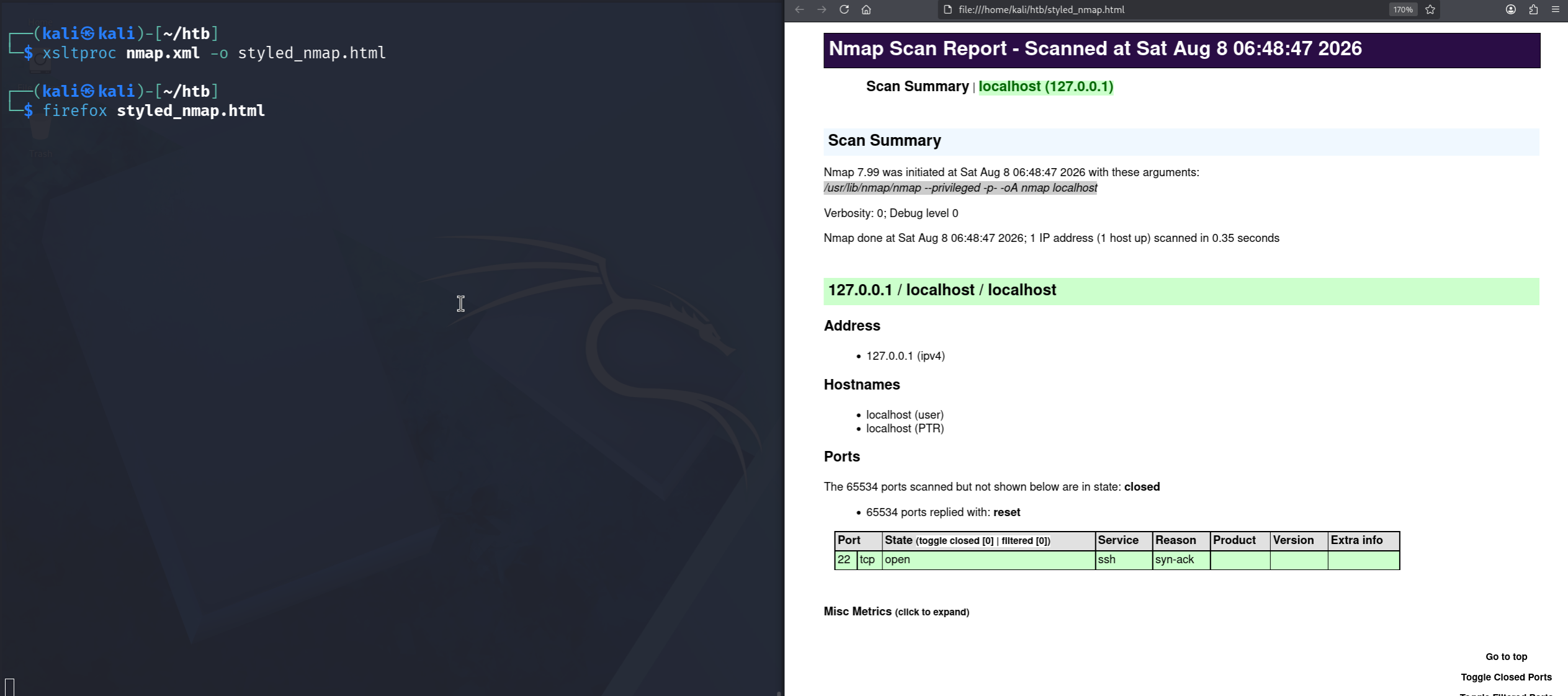

stored in xml format

┌──(kali㉿kali)-[~/htb]
└─$ cat nmap.xml
<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE nmaprun>
<?xml-stylesheet href="file:///usr/share/nmap/nmap.xsl" type="text/xsl"?>
<!-- Nmap 7.99 scan initiated Sat Aug  8 06:48:47 2026 as: /usr/lib/nmap/nmap -&#45;privileged -p- -oA nmap localhost -->
<nmaprun scanner="nmap" args="/usr/lib/nmap/nmap -&#45;privileged -p- -oA nmap localhost" start="1786186127" startstr="Sat Aug  8 06:48:47 2026" version="7.99" xmloutputversion="1.05">
<scaninfo type="syn" protocol="tcp" numservices="65535" services="1-65535"/>
<verbose level="0"/>
<debugging level="0"/>
<host starttime="1786186127" endtime="1786186127"><status state="up" reason="localhost-response" reason_ttl="0"/>
<address addr="127.0.0.1" addrtype="ipv4"/>
<hostnames>
<hostname name="localhost" type="user"/>
<hostname name="localhost" type="PTR"/>
</hostnames>
<ports><extraports state="closed" count="65534">
<extrareasons reason="reset" count="65534" proto="tcp" ports="1-21,23-65535"/>
</extraports>
<port protocol="tcp" portid="22"><state state="open" reason="syn-ack" reason_ttl="64"/><service name="ssh" method="table" conf="3"/></port>
</ports>
<times srtt="2" rttvar="0" to="100000"/>
</host>
<runstats><finished time="1786186127" timestr="Sat Aug  8 06:48:47 2026" summary="Nmap done at Sat Aug  8 06:48:47 2026; 1 IP address (1 host up) scanned in 0.35 seconds" elapsed="0.35" exit="success"/><hosts up="1" down="0" total="1"/>
</runstats>
</nmaprun>

Stored in grepable format

┌──(kali㉿kali)-[~/htb]
└─$ cat nmap.gnmap
# Nmap 7.99 scan initiated Sat Aug  8 06:48:47 2026 as: /usr/lib/nmap/nmap --privileged -p- -oA nmap localhost
Host: 127.0.0.1 (localhost)     Status: Up
Host: 127.0.0.1 (localhost)     Ports: 22/open/tcp//ssh///      Ignored State: closed (65534)
# Nmap done at Sat Aug  8 06:48:47 2026 -- 1 IP address (1 host up) scanned in 0.35 seconds

To document we can style xml file using xsltproc

xsltproc nmap.xml -o styled_nmap.html

Nmap Scripts Scan

Below is the syntax to use scripts

nmap <ip> --script <category>

Below are the categories of nmap scripts

Category	Purpose
`auth`	Checks or bypasses authentication (e.g., weak login methods).
`broadcast`	Discovers hosts/services by sending broadcast requests on the network.
`brute`	Attempts password guessing using brute-force techniques.
`default`	Safe and commonly useful scripts run with `-sC`.
`discovery`	Gathers information about hosts, services, or the network.
`dos`	Tests if a service can be crashed or made unavailable (can be risky).
`exploit`	Tries known vulnerabilities to gain access or control.
`external`	Uses third-party services (like WHOIS, DNS) for extra info.
`fuzzer`	Sends random/malformed inputs to find bugs or crashes.
`intrusive`	More aggressive scripts that may affect the target system.
`malware`	Detects signs of malware or infected systems.
`safe`	Non-intrusive scripts that won’t disrupt normal operations.
`version`	Helps identify service versions and details.
`vuln`	Checks for known security vulnerabilities.

# nmap -sC -sV --script=vuln,auth 192.168.1.10

Starting Nmap 7.94 ( https://nmap.org ) at 2026-08-08

Nmap scan report for 192.168.1.10
PORT    STATE SERVICE VERSION
22/tcp  open  ssh     OpenSSH 7.6p1 Ubuntu
| ssh-auth-methods:
|   Supported authentication methods:
|     publickey
|     password
|_  Potential brute-force target (password auth enabled)

80/tcp  open  http    Apache httpd 2.4.29
| http-title: Apache2 Ubuntu Default Page
|_Requested resource was /index.html
| http-server-header: Apache/2.4.29 (Ubuntu)

| http-vuln-cve2017-5638:
|   VULNERABLE:
|   Apache Struts Remote Code Execution
|     State: VULNERABLE
|     Risk factor: HIGH
|     Description:
|       Target may be vulnerable to remote command execution.
|_    References: CVE-2017-5638

445/tcp open  smb     Samba smbd 4.7.6-Ubuntu
| smb-vuln-ms17-010:
|   VULNERABLE:
|   EternalBlue vulnerability
|     State: VULNERABLE
|     Risk factor: CRITICAL
|_    Exploitable via crafted packets

| smb-enum-shares:
|   account_used: guest
|   \\192.168.1.10\public
|_    READ access

Service detection performed. Please report any incorrect results.
Nmap done: 1 IP address (1 host up) scanned in 35.12 seconds

Speed optimisation

There are flags to increase the speed (at the cost of reliability) of the output generally by reducing timeout, max retries, rate or increasing parrallel tasks.

Flag	What it Controls	What it Does	When to Use
-T <0-5>	Scan speed profile	Predefined speed levels from very slow (stealthy) to extremely fast (noisy)	Use -T4 for most cases, -T5 only in trusted networks
--initial-rtt-timeout	First response wait time	How long Nmap waits for a reply initially before assuming delay	Lower it to speed up scans on fast networks
--max-rtt-timeout	Max response wait time	Upper limit Nmap will wait for responses from targets	Reduce it to avoid wasting time on slow/non-responsive hosts
--max-retries	Retry attempts	Number of times Nmap resends packets if no response	Set to 0 for speed, higher for reliability
--min-rate <num>	Packet sending speed	Forces Nmap to send at least X packets per second	Increase in high-bandwidth/internal tests
--min-parallelism <num>	Parallel probes	Minimum number of simultaneous probes running	Increase to speed up scans on stable networks

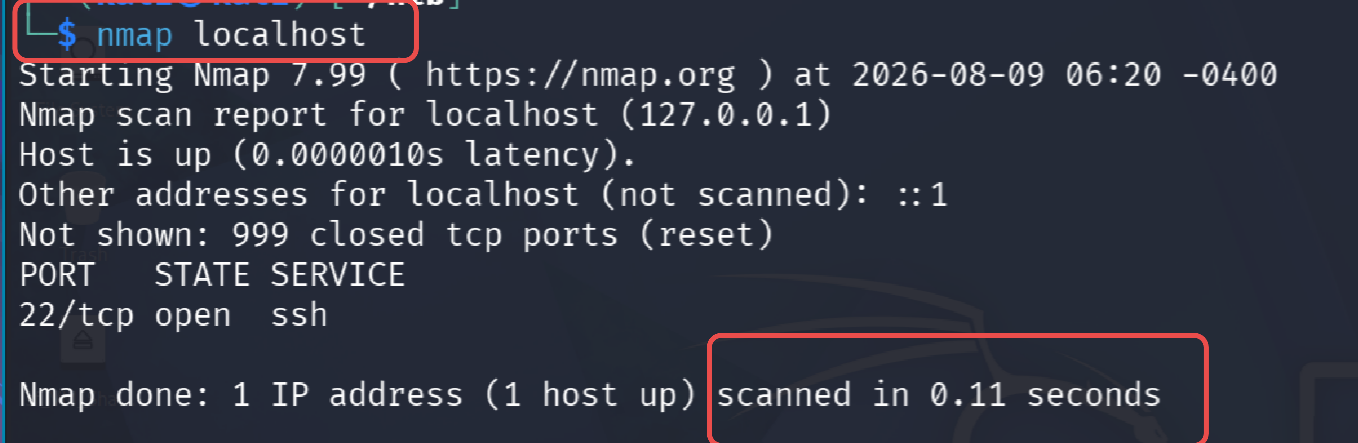

Without any speed optimisation it took 0.11 seconds

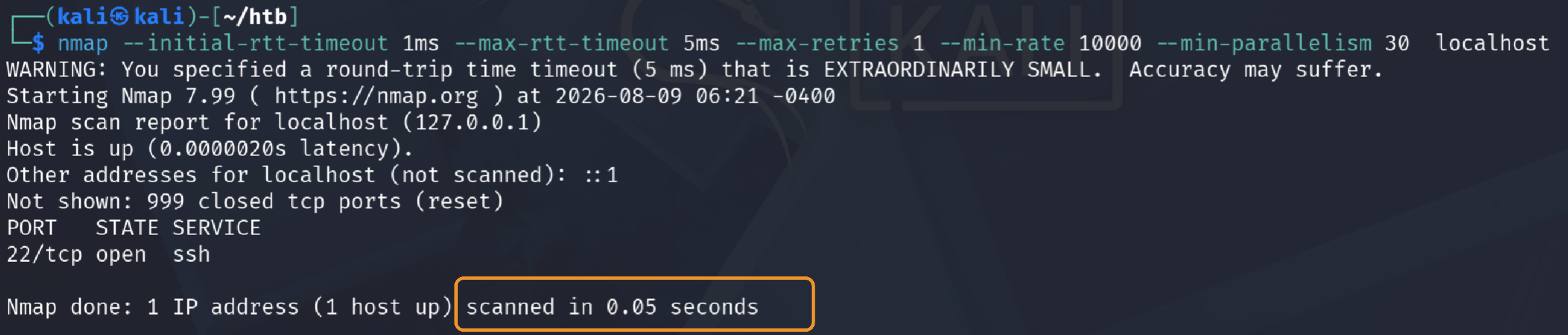

With optimisation it took

nmap --initial-rtt-timeout 1ms --max-rtt-timeout 5ms --max-retries 1 --min-rate 10000 --min-parallelism 30  localhost

Used To​

Syntax​

Find Hosts​

Scan Multiple Hosts​

Scan Ports​

Scan all ports​

Scan specific ports​

Scan port range​

Scan port with specific protocols​

Exclude ports (--exclude-ports <ports>)​

Scan top ports (--top-ports)​

Fast scan (-F)​

Aggressive Scan (-A)​

Packet tracing​

Assume host is online​

Scan Types​

Scan Types: In-depth analysis​

TCP SYN Scan (Stealth Scan) (-sS)​

Case 1: Closed Port​

Case 2: Open Port​

TCP Connect Scan (-sT)​

Case 1: Closed Port​

Case 2: Open Port​

UDP Scan (-sU)​

Case 1: Closed Port​

Case 2: Open Port​

ACK Scan (-sA)​

Case 1: Unfiltered Port​

Case 2: Filtered Port​

NULL Scan (-sN)​

Case 1: Closed Port​

Case 2: Open|Filtered Port​

Version Scan (-sV)​

Store Results​

Nmap Scripts Scan​

Speed optimisation​

Used To

Syntax

Find Hosts

Scan Multiple Hosts

Scan Ports

Scan all ports

Scan specific ports

Scan port range

Scan port with specific protocols

Exclude ports (--exclude-ports <ports>)

Scan top ports (--top-ports)

Fast scan (-F)

Aggressive Scan (-A)

Packet tracing

Assume host is online

Scan Types

Scan Types: In-depth analysis

TCP SYN Scan (Stealth Scan) (-sS)

Case 1: Closed Port

Case 2: Open Port

TCP Connect Scan (-sT)

Case 1: Closed Port

Case 2: Open Port

UDP Scan (-sU)

Case 1: Closed Port

Case 2: Open Port

ACK Scan (-sA)

Case 1: Unfiltered Port

Case 2: Filtered Port

NULL Scan (-sN)

Case 1: Closed Port

Case 2: Open|Filtered Port

Version Scan (-sV)

Store Results

Nmap Scripts Scan

Speed optimisation
